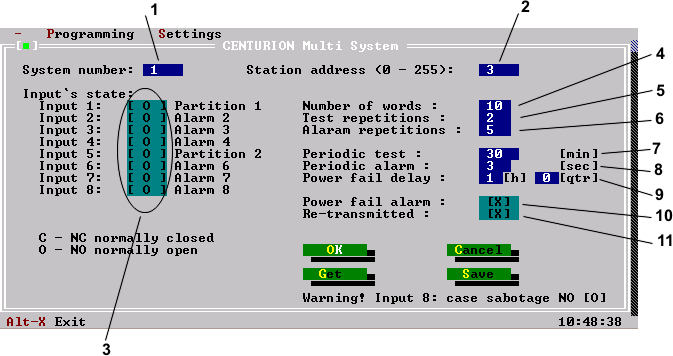

Parameter settings in the system

CENTURION® MULTI system

1. “System” – system number

2. “Subscriber number” – individual transmitter number

3. Defines normal state of alarm inputs. Each input is individually programmed and can be in mode C: normally closed or O: normally open.

4. “Number of codes in the telegram” – defines the number of words in a single telegram transmission.

5. “Test repetition number” – defines the number of periodical test repetitions.

6. “Alarm repetition number” – defines the number of alarm telegram repetitions or the number of return to normal state messages.

7. “Test repetition time” - defines the time interval between successive periodical test messages.

8. “Alarm repetition time” – defines the time interval between successive repetitions of alarm telegrams in seconds (s).

9. “Power failure delay” – defines the time of continuous external power failure, after which transmission of the alarm message will be enabled; hours (h) and quarters of an hour (qtr)

10. “Power fail alarm” – activated “[x]” or disactivated “[]”.

11. “Retransmitter mode” – enables retransmission of sent telegrams via net retransmitters, on "[x] or off"[]".
