Selecting transmitter’s working frequency

Transmitter TA105 works at one of four frequencies (A,B,C,D) in 149 MHz-174MHz band, which were programmed by the producer according to the specifcation in the order (for operators working in a number of monitoring frequencies).

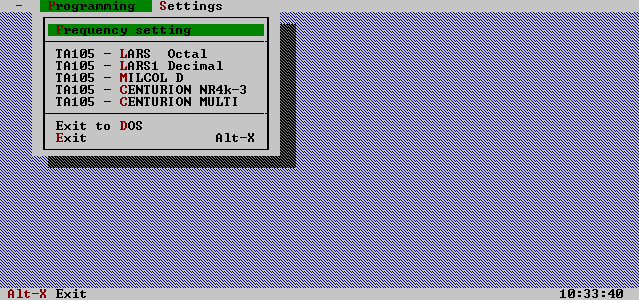

Setting transmitter’s working frequency is possible after activating PROGRAMMING function in the menu, choosing FREQUENCY SETTING and confirming with ENTER key.

In PROGRAMMING menu there is “exit to DOS” function, which allowes to exit the programme for a period of time and move to DOS (return to programme with EXIT command), and “exit” function, which closes the programme. It is also possible to exit the programme by pressing ALT-X keys.

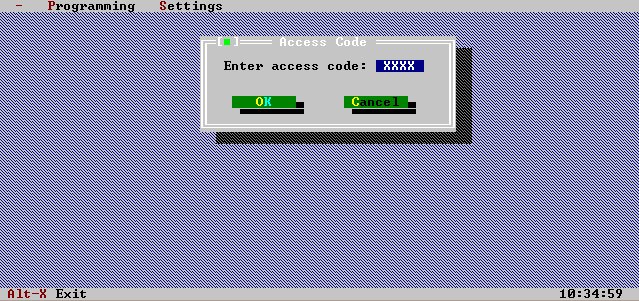

When a function has been chosen, a window will display request for programming access code.

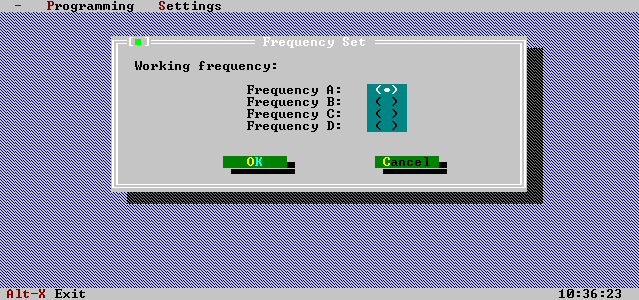

There can be set one of four transmitter working frequencies pre-programmed by the producer. The indicator has to be pointed at one of the four frequencies: A, B, C or D, using “up” and “down” pointers and then accepted with ENTER key. Correct programming will be confirmed with a message and the device will return to main menu.

Programming transmitter’s working standard

Choosing standard is possible after activating PROGRAMMING function in the main menu and then choosing a specific system with pointers and confirming with ENTER key.


TA105 can be programmed in one of five standards:


-         LARS® octal system

-         LARS® decimal system

-         MILCOL D® system

-         CENTURION® NR4-k3 system

-         CENTURION® MULTI system
