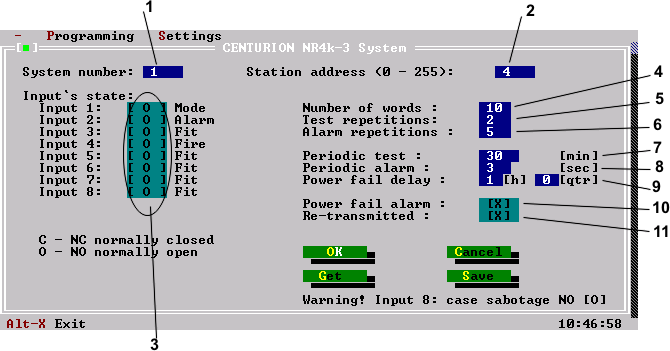

Parameter settings in the systemCENTURION® NR4-k3 system
1. “System” – system number, 0 through 7 2. “Subscriber number” – individual transmitter number (0-250) 3. Defines normal state of alarm inputs. Each input is individually programmed and can be in mode C: normally closed or O: normally open. 4. “Number of codes in the telegram” – defines the number of words in a single telegram transmission. 5. “Test repetition number” – defines the number of periodical test repetitions. 6. “Alarm repetition number” – defines the number of alarm telegram repetitions or the number of return to normal state messages. 7. “Test repetition time” - defines the time interval between successive periodical test messages. 8. “Alarm repetition time” – defines the time between interval successive repetitions of alarm telegrams in seconds (s). 9. “Power fail delay” – defines the time of continuous external power failure, after which transmission of the alarm message will be enabled; hours (h) and quarters of an hour (qtr). 10. “Power fail alarm” – activated “[x]” or disactivated “[]”. 11. “Retransmitter mode” – enables retransmission sent telegrams via net retransmitters; on “[x]” or off “[]”. |
|
