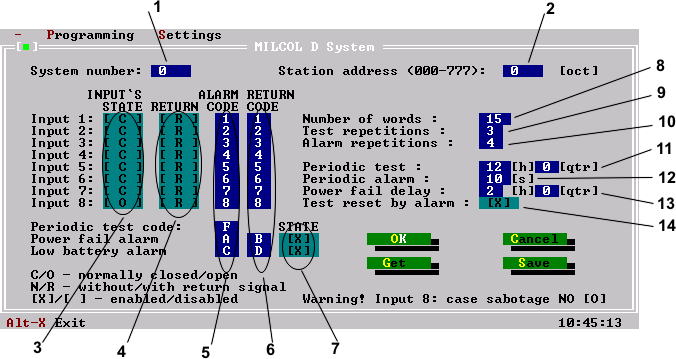

Parameter settings in the system

MILCOL D® system

1. “System” – system number, 0 through 7

2. “Transmitter number” – individual transmitter number in octal notation

3. Defines normal state of alarm inputs. Each input is individually programmed: mode C: normally closed or O: normally open.

4. Defines alarm signal mode: N - only alarm signal, R - alarm signal and return to normal state signal. Each input is individually programmable.

5. Individual telegram code number (0-9, A-F)

6. Individual telegram code number for return to normal state (0-9, A-F)

7. Switching on or off the signal for external power failure or low battery level.

8. “Number of codes in the telegram” – defines the number of words in a single telegram transmission.

9. “Test repetition number” – defines the number of periodical test repetitions.

10. “Alarm repetition number” – defines the number of alarm telegram repetitions or the number of return to normal state messages.

11. “Test repetition time” - defines the time interval between successive periodical test messages. In the first window the number of hours is set (h), in the second window the number of quarters of an hour (15 min) (from 0 to 3).

12. “Alarm repetition time” – defines the time between successive repetitions of alarm telegrams in seconds (s).

13. “Power failure delay” – defines the time of continuous external power failure, after transmission of the alarm message will be enabled; hours (h) and quarters of an hour (qtr)

14. “Test repetition time reset” – enables of resetting the timer counting time intervals between periodical test telegrams by other telegrams. Disabling this function results in sending tests in regular time periods defined by the user, regardless of alarm telegrams sent.
